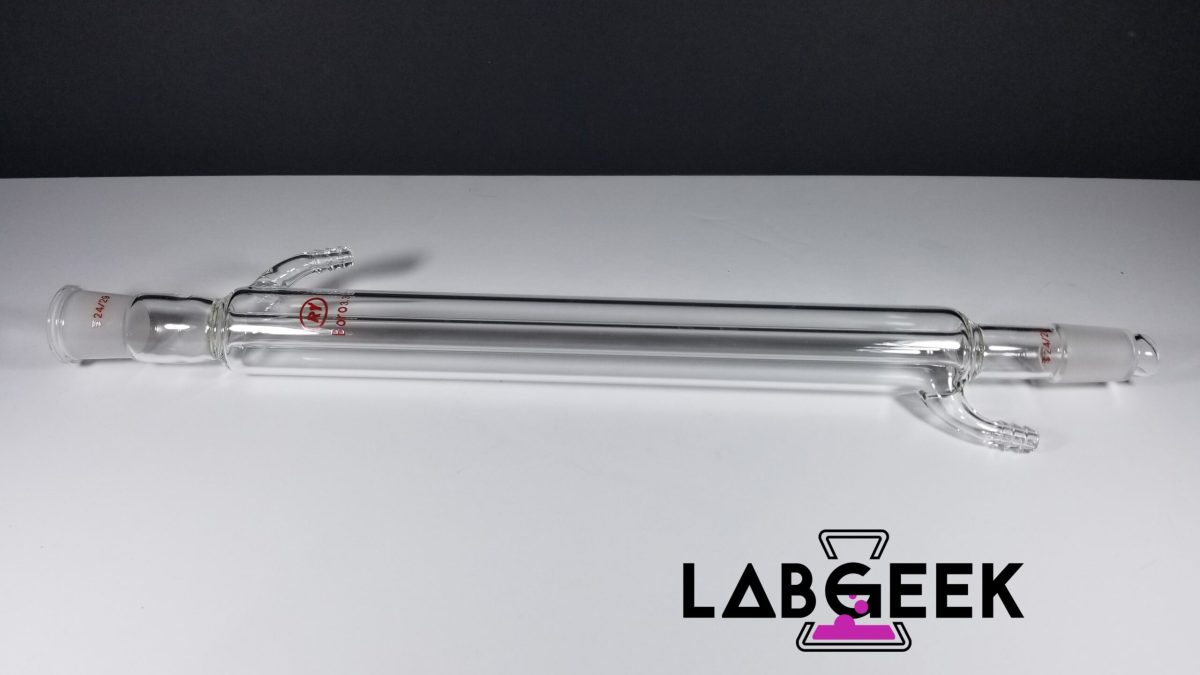

An Liebig condenser is a straight glass tube with a water jacket. Their uses include distillation, reflux and extraction.

Vapor from a distillation is run through the glass tube and recondensed by the cooling effect of running water through the water jacket, and flows through the tube into a receiving flask.

Longer condensers allow for the cooling of higher temperature vapors, but increasingly require the support of retort stands.

Liebig condensers have the advantage of a straight tube, making them simple to operate and clean.

These also have the strong advantage of being simple to clean as well, saving time and money, and a simple brush and water can be used for most cleaning applications.

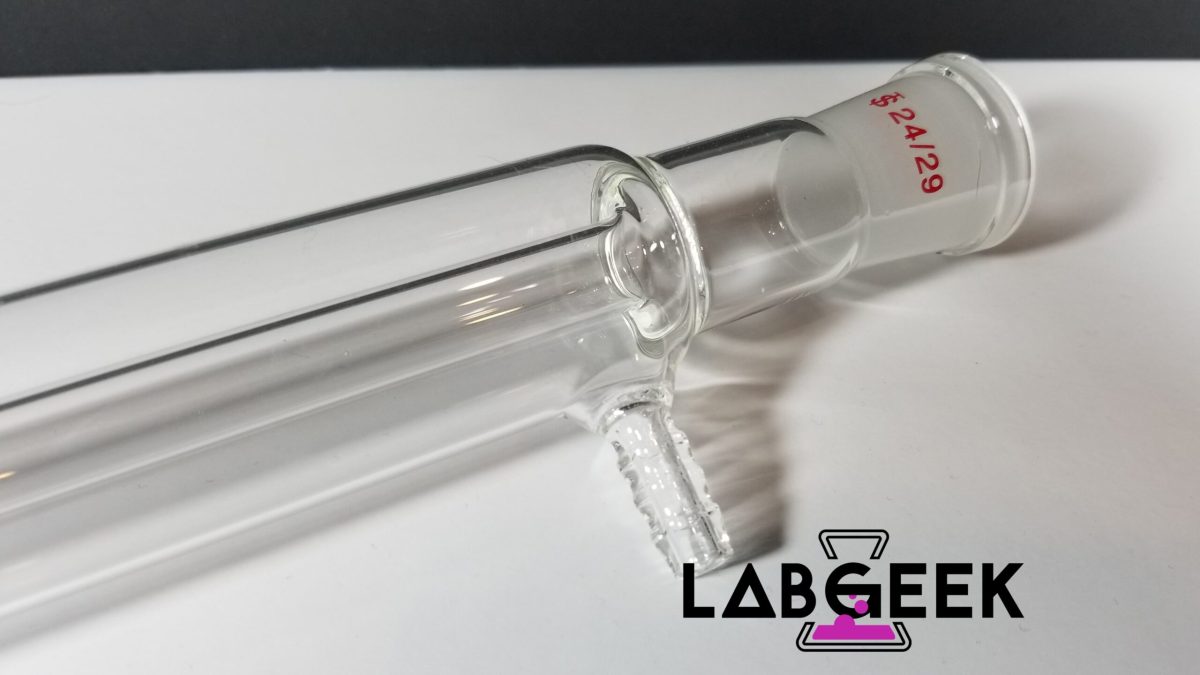

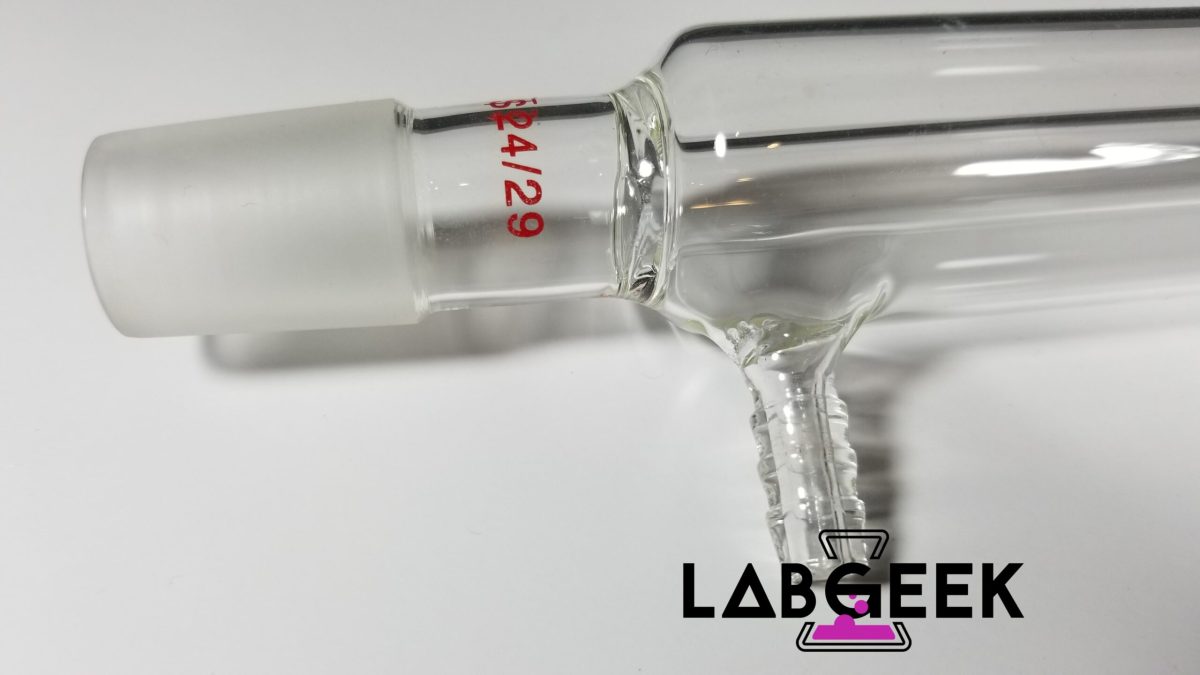

These Liebig condensers have two ground glass joints which are compatible with most of the glassware here at LabGeek, making for hassle free connections. When fitted, these glass joins provide a tight seal to prevent leakages.

Joint clips are highly recommended to keep these joints securely in place.

This type of condenser was named after Justus von Liebig who improved upon an existing design and perfected it.

Liebig Condenser Specifications:

– Made of borosilicate glass
– With 10mm hose connection.
– Has 24/29 joints

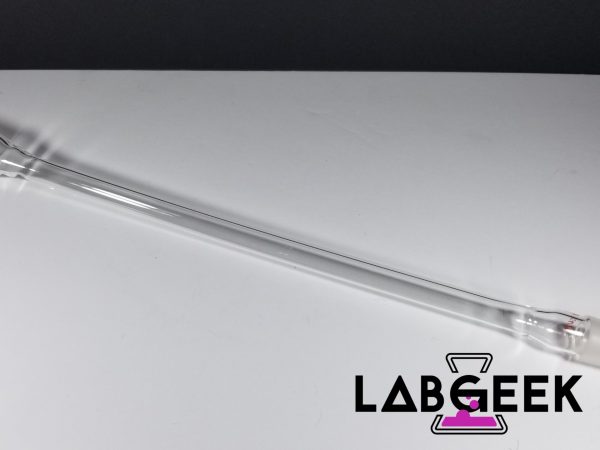

Note: Image is of 300mm Condenser, you will receive a condenser of the length you select.
